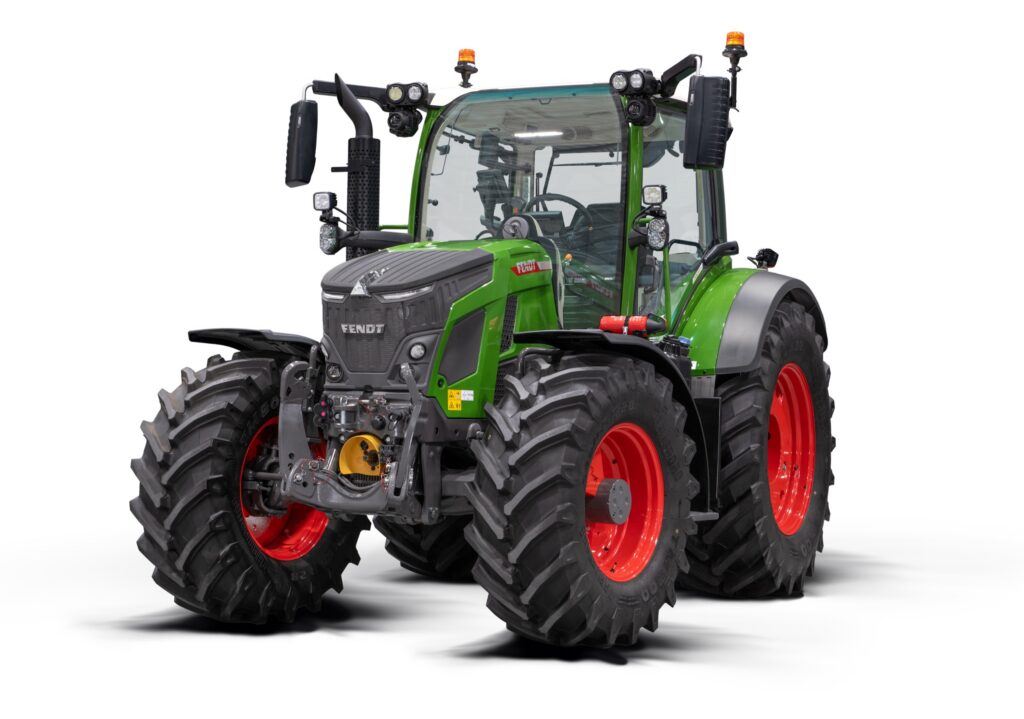

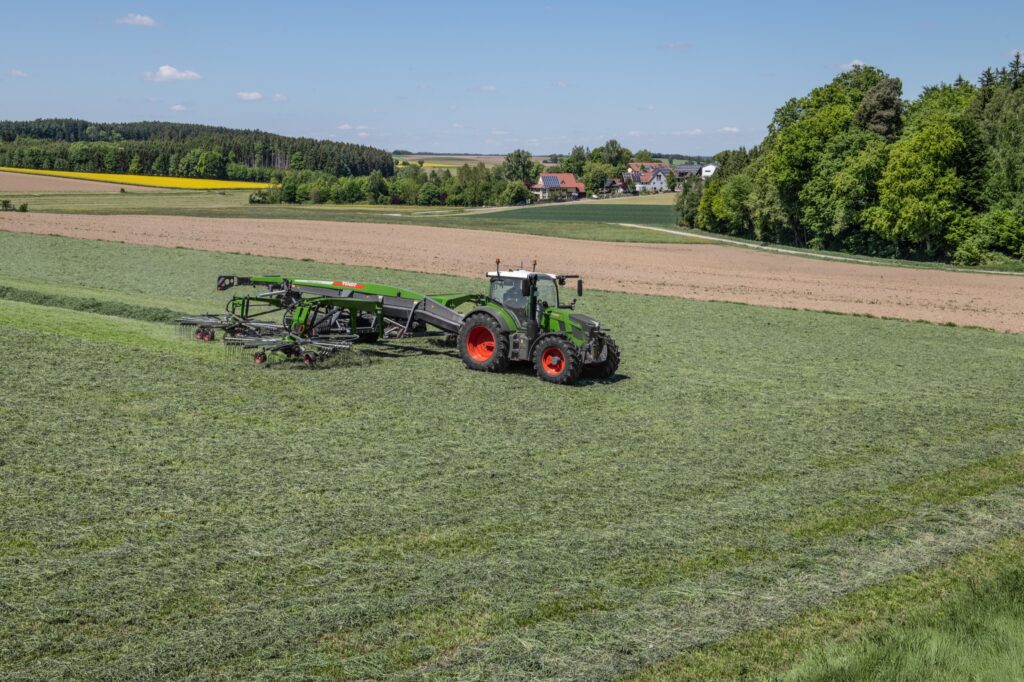

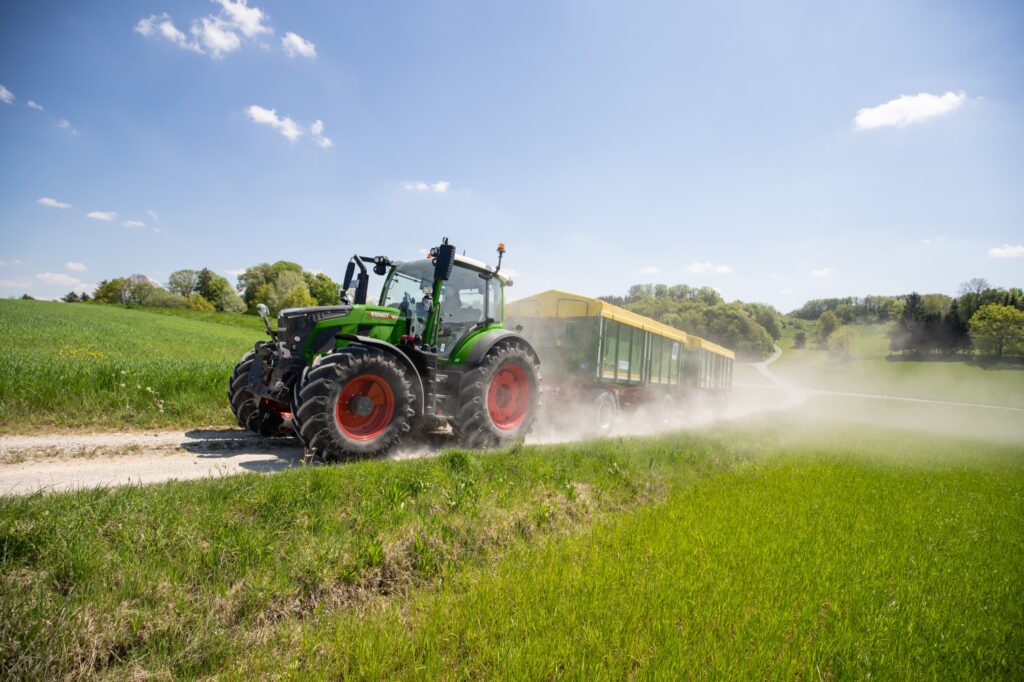

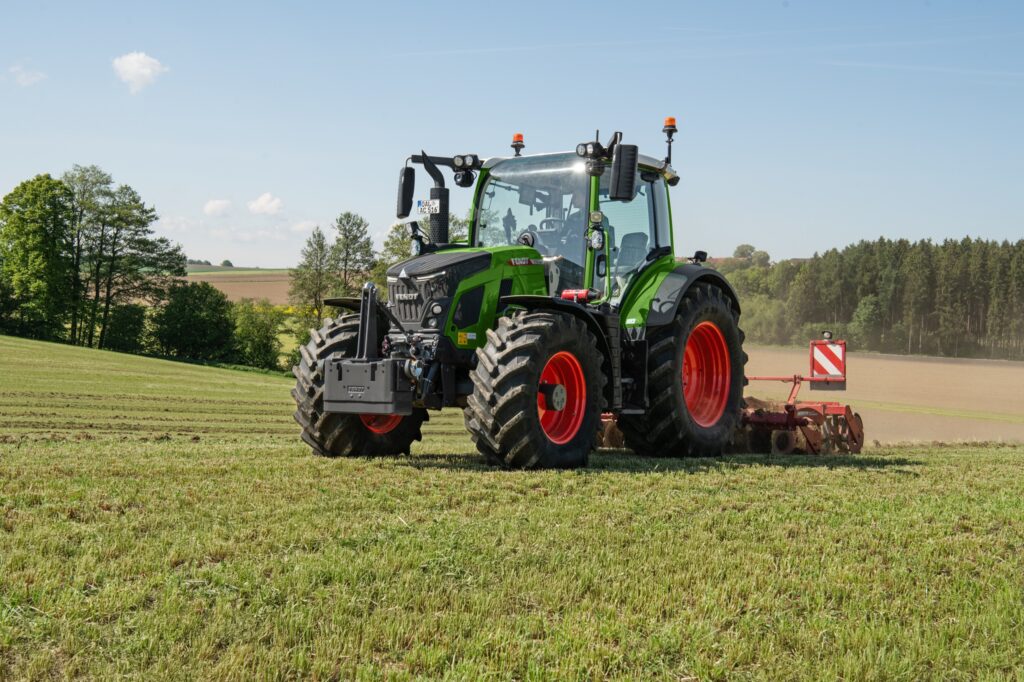

Get the power that matches your farm exactly. The Fendt 500 Vario is a versatile tractor built for an intensive daily routine: compact, powerful and dependable. With up to 163 hp and an economical stepless transmission, the 500 Vario responds instantly and works efficiently across every task — from feeding and raking to baling and hauling loads between fields. Manoeuvrability and a tight turning radius make loader work and repositioning easier, while the FendtONE interface sets a new standard for how operator and machine work together. The spacious, ergonomic cab offers premium comfort and excellent visibility, so even long shifts pass more easily and productively. Take control of any task with the Fendt 500 Vario.
Specifications
Specifications
FENDT
513
514
515
516
AgcoPower engine
Rated power, kW/hp (ECE R24)
99/134
106/144
113/154
121/164
Maximum power, kW/hp (ECE R24)
99/134
106/144
113/154
121/164
Maximum power with DP to ECE R 120
106/144
113/154
121/164
128/174
Number of cylinders
4
Displacement, l
5
TRANSMISSION
Type:
Vario Drive stepless transmission
Maximum travel speed, km/h
50
PTO
Rear PTO, rpm
540/540E/1000/1000E
Hydraulic system
Pump flow (200 bar), l/min
109 or 152
Available hydraulic oil, l
51
Rear three-point linkage
Max. rear linkage lift capacity, kg
7890
Tyres
Front tyres
480/65R28; 540/65R28; VF600/60R28
Rear tyres
600/65R38; 650/65R38; VF 710/60R38
Dimensions
Operating weight, kg
6850
Overall width, mm
2450
Overall height, mm
2975
Benefits
Efficient power in a compact package. With a 4-cylinder engine delivering 124–163 hp, the 500 Vario combines strength with agility, making it ideal for loader work, baling, transport and light tillage.
VarioDrive transmission. The stepless VarioDrive transmission with independent front and rear axle drive delivers power smoothly and improves manoeuvrability through its pull-in-turn effect.
High-performance hydraulics. A choice of closed-centre hydraulic systems delivering 100 or 152 l/min, with up to 10 rear spool valves and Power Beyond. Rear linkage lift capacity is 7890 kg, with 3420 kg at the front (optional).

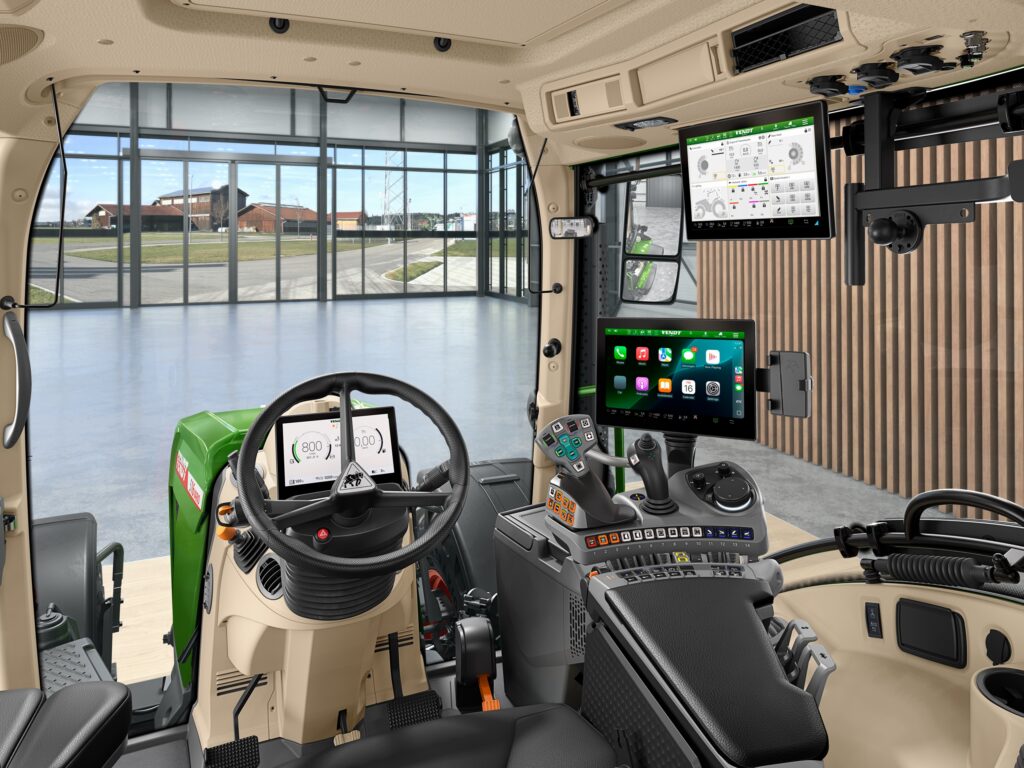

FendtONE™ operator workstation. Configure controls, task management and data handling through the intuitive FendtONE platform. Up to three displays, a multifunction joystick and colour-coded controls simplify operation.
VisioPlus™ cab comfort. A 77° panoramic view, ergonomic seating and an optional infotainment package with a 4.1 sound system deliver comfort and visibility all day long.

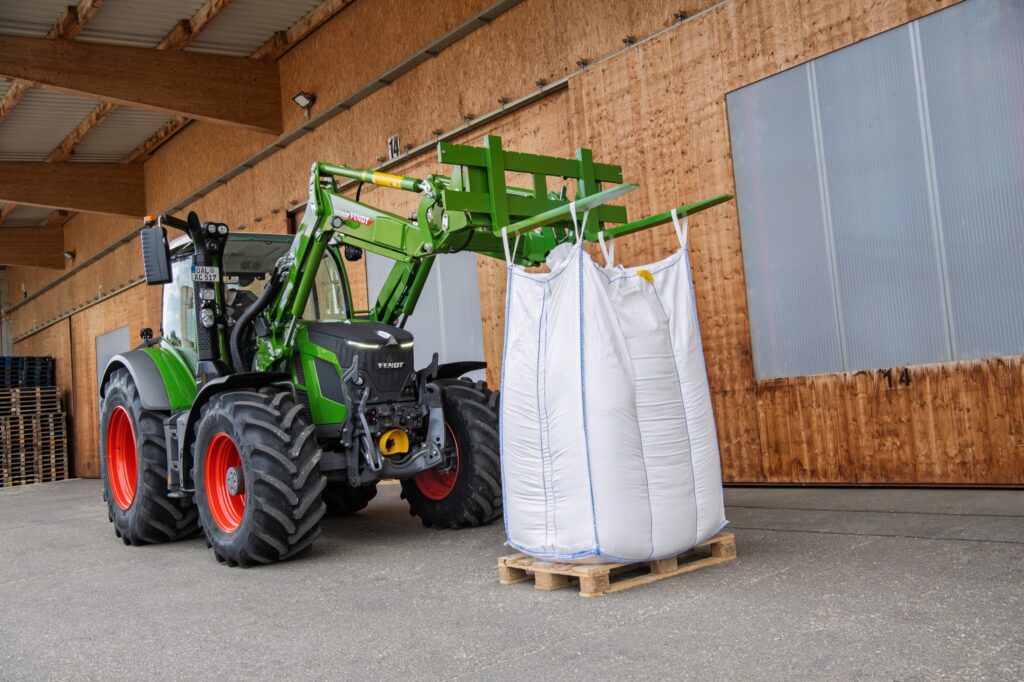

Loader-ready design. A fully integrated front linkage and compatibility with Fendt Cargo and CargoProfi loaders ensure smooth handling. Features include a third valve function, suspension, memory settings and integrated weighing.
Smart farming solutions. Choose from modular unlocks: guidance, Contour Assistant, TI Headland, Section Control and Variable Rate Control. ISOBUS compatibility brings precision and efficiency to every field task.
