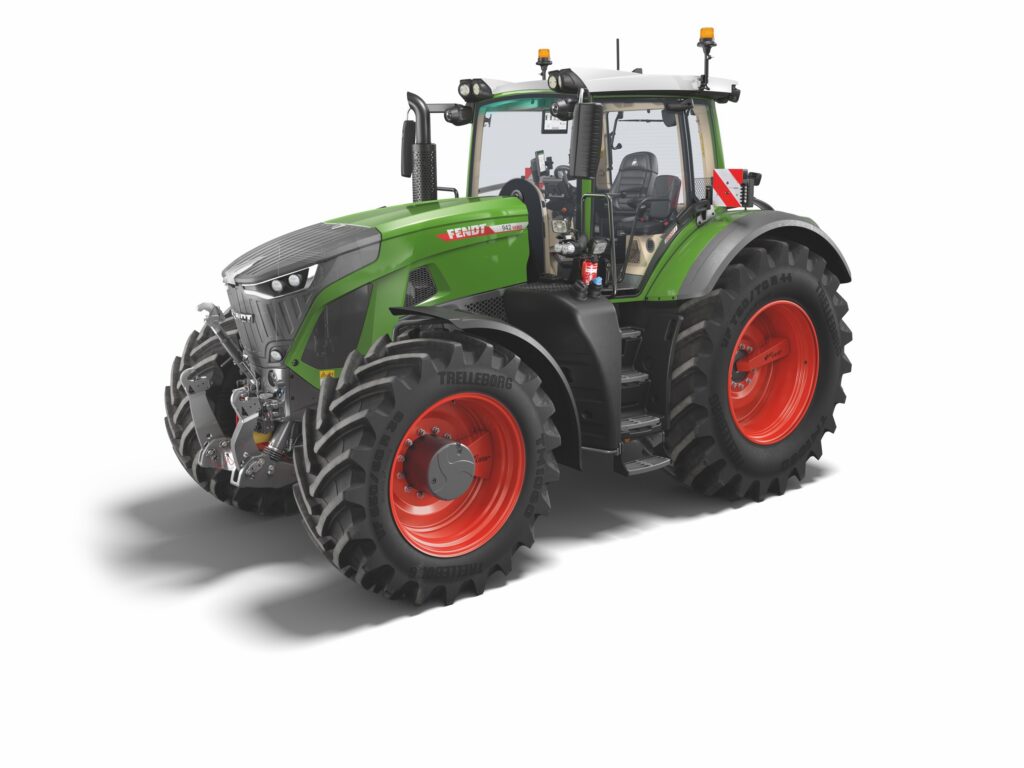

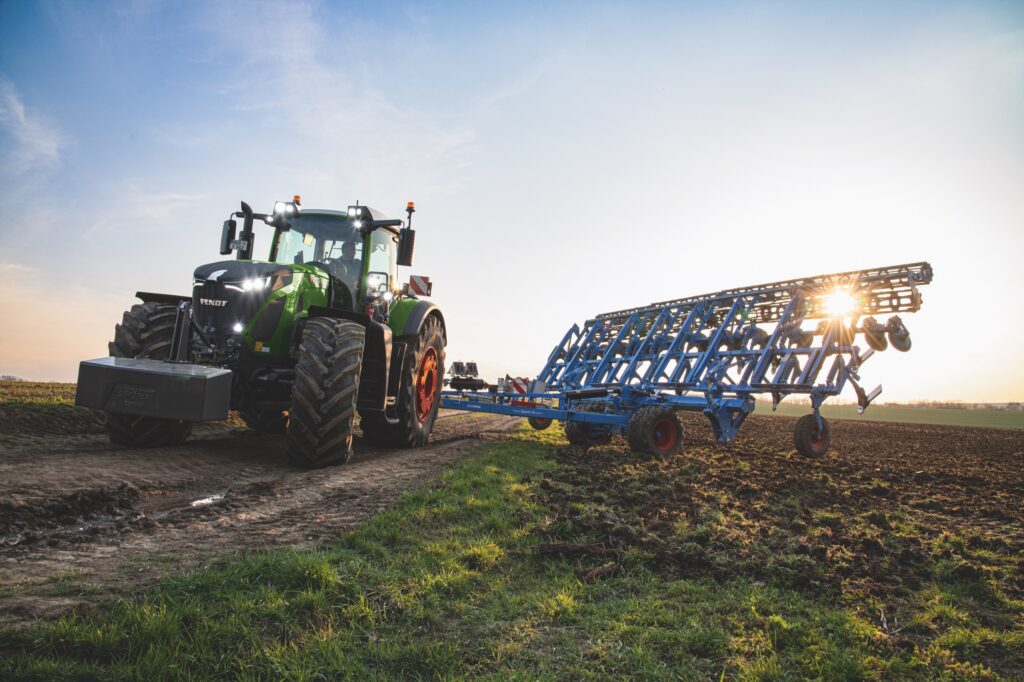

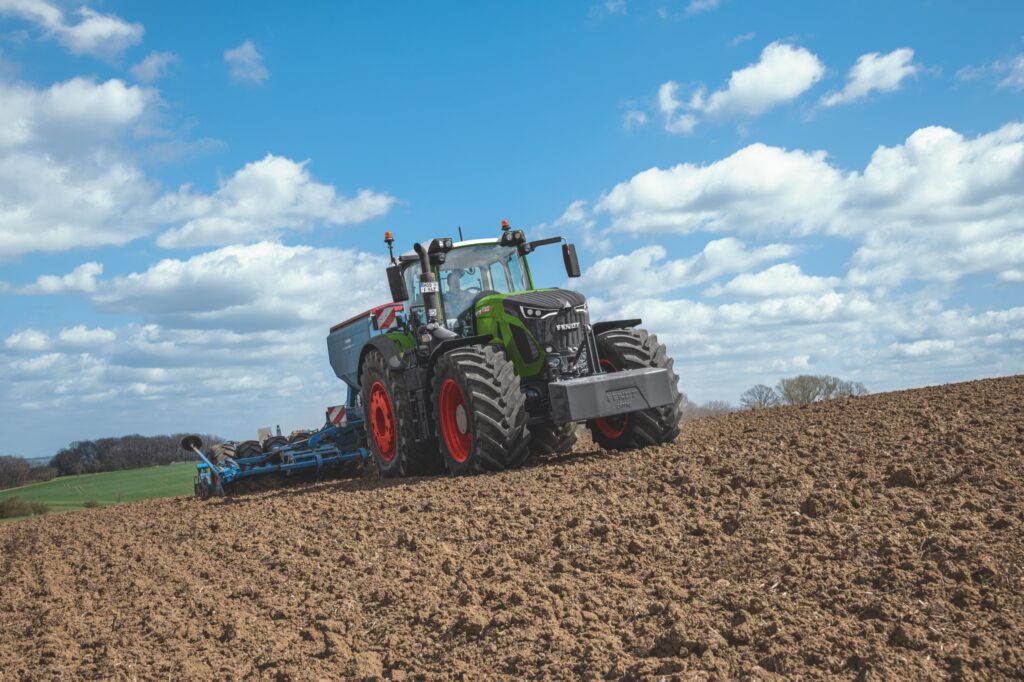

Fendt 900 Vario wheeled tractors
The new Fendt 900 Vario series embodies advanced innovation, technology and efficiency in tractor engineering. Designed around the needs of today's operator, the Fendt 900 Vario series redefines what a high-horsepower wheeled tractor can do, uniting power, intelligent solutions and refined execution in a single high-output machine. Whether the job is large-scale drilling, tillage, transport or contracting for third parties, the Fendt 900 Vario takes the quality of your work to a fundamentally new level. The Fendt 900 Vario stands out for its exceptional flexibility and impresses with low fuel consumption. With the FendtONE digital platform you can plan, organise and document your work in the simplest way possible.
The Fendt 900 Vario series is built in five model variants with a maximum power range from 296 to 415 hp.
Specifications
Download the PDF brochure| Model | 930 | 933 | 936 | 939 | 942 |
|---|---|---|---|---|---|
| ENGINE | MAN | ||||
| Rated power, kW/hp (ECE R120) | 217/296 | 239/326 | 261/355 | 283/385 | 305/415 |
| Max. power, kW/hp (ECE R120) | 217/296 | 239/326 | 261/355 | 283/385 | 305/415 |
| Number of cylinders | 6 | ||||
| Displacement, cm³ | 9037 | ||||
| Rated engine speed, rpm | 1700 | ||||
| Max. torque, Nm | 1550 | 1650 | 1750 | 1850 | 1970 |
| Torque backup, % | 26,9 | 22,7 | 19,4 | 16,4 | 15,0 |
| Diesel tank capacity, l | 625 | ||||
| AdBlue tank capacity, l | 70 | ||||
| TRANSMISSION | |||||
| Type | Vario Drive stepless transmission | ||||
| Model | ТА 300 | ||||
| Working speed range forward/reverse, km/h | 0,02 – 60 / 0,02 – 33 | ||||
| PTO | |||||
| Rear PTO, rpm (option) | 540E/1000 (1000E/1000) | ||||
| Front PTO, rpm (option) | 1000 | ||||
| Hydraulic system | |||||
| Hydraulic pump output at 200 bar, l/min | 220 (165/430 optional) | ||||
| Number of spool valves, pairs | up to 8 | ||||
| Max. extractable oil, l | 90 | ||||
| Rear three-point linkage | |||||
| Max. rear linkage lift capacity, daN | 12 410 | ||||
| Max. front linkage lift capacity, daN (option) | 5584 | ||||
| Tyres | |||||
| Front tyres | 600/70 R34 | 600/70 R34 | 650/65 R34 | 650/65 R34 | 650/60 R38 |
| Rear tyres | 710/70 R42 | 710/70 R42 | 710/75 R42 | 710/75 R42 | 750/70 R44 |
| Dimensions | |||||
| Overall length, mm | 5850 | ||||
Benefits
- High-torque MAN engine. The 6-cylinder, 9.0-litre MAN engine delivers 296–415 hp and a peak torque of up to 1970 Nm from as low as 1550 rpm. The Fendt iD™ low-engine-speed concept (650–1700 rpm) ensures maximum efficiency and long service life.
- Stepless VarioDrive transmission. Across a speed range from 0.02 km/h to 60 km/h, the VarioDrive transmission distributes torque between the axles automatically, reducing slip and removing the need to engage all-wheel drive manually.
- High-performance hydraulics. An optional dual-pump, dual-circuit hydraulic system delivers up to 430 l/min; up to six rear spool valves are available, along with the option of a front linkage and front hydraulics. The tractor has separate oil systems for transmission and hydraulic oil, preventing dirt from entering and damaging the transmission.
- VarioGrip™ for soil protection. The integrated tyre pressure regulation system improves traction, reduces soil compaction and raises efficiency: tractive force increases by up to 10% and fuel consumption drops by 8%.

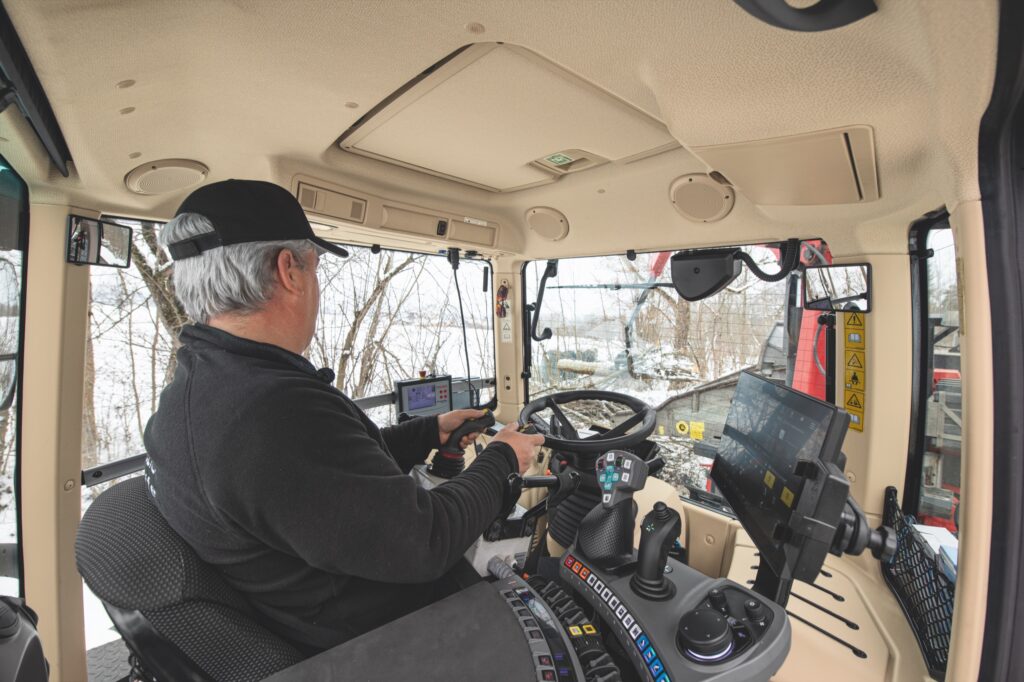

- Operator comfort and intelligent technology. The FendtONE™ cab features two 12-inch displays, a joystick with configurable functions and pneumatic cab suspension. The precision farming suite includes Fendt TI Headland, Section Control, TaskDoc® and Fendt Connect™ for comprehensive fieldwork management.
